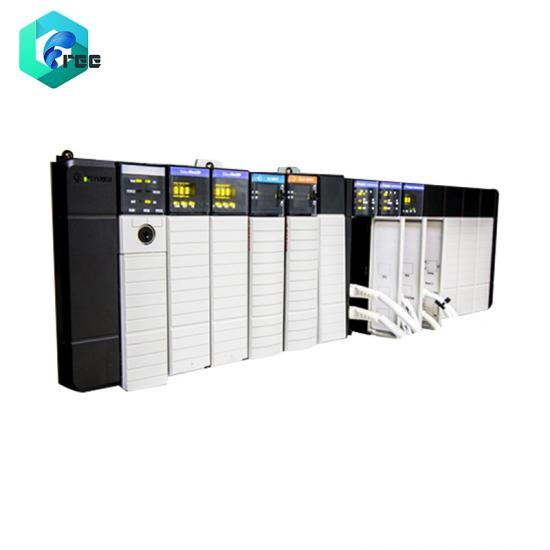

Allen Bradley 1746-OA16 Digital AC Output Module
Item No.:
Allen Bradley 1746-OA16Payment:
T/TProduct origin:
Sweden (SE)Color:
MentalGoods_stock:
999Shipping port:
HongKongLead Time:
1-2 DaysAllen Bradley 1746-OA16 Digital AC Output Module
Contact: fay@free-plc.com
To limit the effects of leakage current through solid-state oututs, a loading resistor can be connected in parallel with your load. For 120V AC operation, use a 15 kΩ, 2 W resistor. For 240V AC operation, use a 15 kΩ, 5 W resistor. Repeatability is once every. Repeatability is once every . Triac outputs turn on at any point in the AC line cycle and turn off at AC line zero cross. Recommended surge for triac outputs when switching 120V AC inductive loads, use Harris Metal-oxide Varistor, model number V220MA2A. Refer to the SLC 500 Modular Hardware Style User Manualr.
Allen Bradley 1746-OA16 Digital AC Output Module Technical drawing:
