ABB adapter NPCU-01 ABB PC Connection Unit NPCU 01

If you have an ACS310, ACS320, ACS350, ACS355, ACS/ACH550 or similar drive you need an OPCA-02 adapter. If you are working with a DCS400, DCS550 or DCS800 drive you do not need any other hardware components then a standard serial cable. You can connect the cable directly into the RS232 port of the drive. With other drives you need a standard serial cable and an appropriate adapter.
If you are connecting an ACS140 or an ACS400 drive you must have an RS485/RS232 adapter. The adapter used with these drives is shown in Figure 1. For ACS160 drives a CFB-RS adapter is needed and to connect an ACS600 or ACS800 drive a panel link is established via an NPCU-01 adapter.

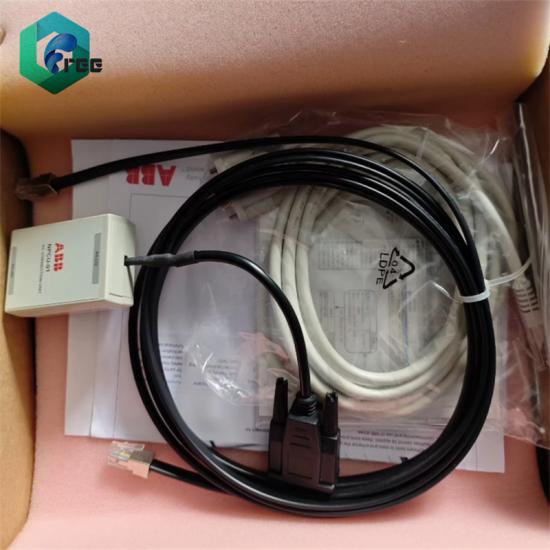

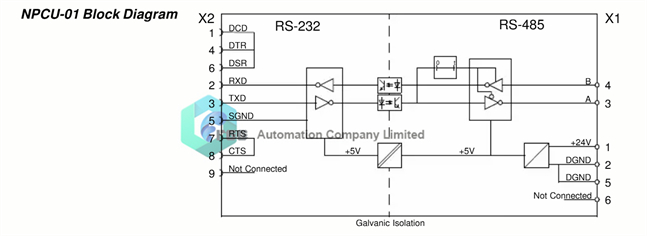

The NPCU-01 The NPCU-01 PC Connection Unit is a galvanically-isolated PC Connection Unit RS-232/485 converter that enables the use of a PC - instead of the Control Panel - for controlling ABB DCS 500, ACS 600 or ACS 1000 series drives.
The NPCU-01 is plugged into a serial port on the PC. The drive is connected to the NPCU-01 using the 3-metre (also the maximum length) flat oval telephone cable included. Locating the PC up to 1200 metres away from the drive is possible by constructing a panel bus using two NBCI Panel Bus Interface Connection Modules (available separately).
